$9,899.00

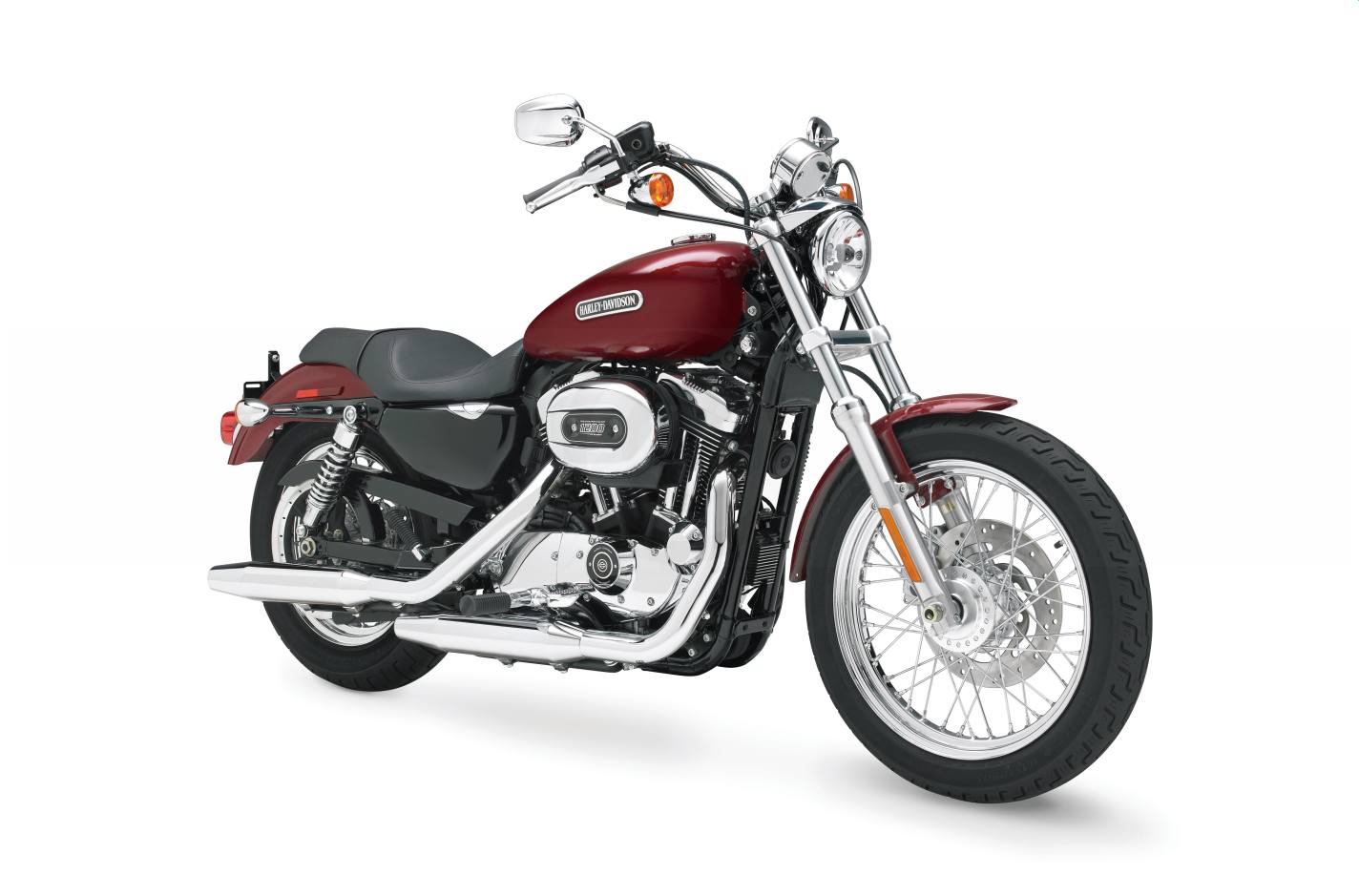

2010 Harley-Davidson® Sportster® 1200 Low
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Rubber-Mounted 1200CC Evolution® Engine - Black, powder coated 1200cc Evolution® engine with polished rocker covers. Air-cooled and rubber-mounted for a smooth ride.


Staggered Shorty Exhaust - Chrome, staggered shorty exhaust with dual mufflers.


Mid-Mounted Footpegs - Mid-mounted footpegs for a sporty riding position.


Passenger Pegs - Standard passenger footpegs help to share the ride.


Low Custom Tank - Sportster® fuel tank provides recognizable custom style.


One-Piece, Two-Up Sportster® Classic Seat - One-piece, two-up Sporster® classic seat sits low (26.3 inches from the ground) with a narrow nose, low forward profile, small pillion, and rear "Sportster®" embroidery.


Low Suspension - Low, adjustable suspension for stability and easy in handling.

    Dimensions
    • Length: 89.1 in. (2263.14 mm)
    • Seat Height (Laden): 26.3 in. (668.02 mm)
    • Seat Height (Unladen): 28 in. (711.2 mm)
    • Ground Clearance: 4.4 in. (111.76 mm)
    • Rake Steering Head: 29.6 °
    • Trail: 4.7 in. (119.38 mm)
    • Wheelbase: 59.7 in. (1516.38 mm)
    • Fuel Capacity: 4.5 gal. (17.0325 L)
    • Oil Capacity: 2.8 qt. (2.6488 L)
    • Dry Weight: 557 lbs. (252.6552 kg)
    • Running Order Weight: 581 lbs. (263.5416 kg)
    Powertrain
    • Engine: Air-cooled, Evolution®
    • Displacement: 73.3 cu. in. (1200 cc)
    • Bore: 3.5 in. (88.9 mm)
    • Stroke: 3.812 (96.8248)
    • Engine Torque: J1349; 79 ft. lbs. (107.1082 Nm) @ 4000 rpm
    • Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)
    • Compression Ratio: 9.7:1
    • Primary Drive: Chain, 57/38 ratio
    • Fuel Economy: 42 mpg (42 l/100km)
    • Gear Ratio 1st: 9.315
    • Gear Ratio 2nd: 6.653
    • Gear Ratio 3rd: 4.948
    • Gear Ratio 4th: 4.102
    • Gear Ratio 5th: 3.517
    Wheels/Tires
    • Front Wheels: Black, 13-Spoke Cast Aluminum
    • Wheel Option: Chrome, Laced Steel
    • Rear Wheels: Black, 13-Spoke Cast Aluminum
    • Front Tire: 100/90-19 57H
    • Rear Tire: 150/80B16 71H
    Electrical
    • Instruments: Handlebar-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
    • Indicator Lamps: High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional)
    Chassis
    • Brakes: Dual-piston front, single-piston rear
    • Lean Angle: 31 / 30 °
    • Exhaust System: Chrome, staggered shorty exhaust with dual mufflers
    Color Options
    • Color Options: Vivid Black Flame Blue Pearl Red Hot Sunglo Two-Tone Scarlet Red / Vivid Black Two-Tone Merlot Sunglo / Cherry Red Sunglo (Custom Color) Two-Tone White Ice Pearl / Black Ice Pearl (Custom Color)
    NOTES:

    Options such as color are available at additional cost.


    Specifications

    Engine
    Engine Type Evolution®
    Displacement 73.3 cu. in. (1200 cc)
    Bore and Stroke 3.5 in. (88.9 mm) and 3.812 in. (96.8248)
    Cooling Air-cooled
    Compression Ratio 9.7:1
    Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
    Chassis
    Front Brakes Dual-piston
    Front Tire 100/90-19 57H
    Rear Brakes Single-piston
    Rear Tire 150/80B16 71H
    Dimensions
    Dry Weight 557 lbs. (252.6552 kg)
    Fuel Capacity 4.5 gal. (17.0325 l)
    Wheelbase 59.7 in. (1516.38 mm)
    MPG 42 mpg (42 l/100km)
    Seat Height Laden: 26.3 in. (668.02 mm); Unladen: 28 in. (711.2 mm)
    Trail 4.7 in. (119.38 mm)
    Rake 29.6 deg.
    Transmission
    Transmission 5 Speed
    Final Drive Chain, 57/38 ratio
    General
    Speedometer Electronic
    Odometer Electronic
    Colors Vivid Black Flame Blue Pearl Red Hot Sunglo Two-Tone Scarlet Red / Vivid Black Two-Tone Merlot Sunglo / Cherry Red Sunglo (Custom Color) Two-Tone White Ice Pearl / Black Ice Pearl (Custom Color)

    Compare Models

    		 Print








    Year 2010
    Manufacturer Harley-Davidson®
    Model Sportster® 1200 Low
    Style Sport
    MSRP* $9,899.00
    Chassis
    Front Suspension
    Front Brakes Dual-piston
    Front Tire 100/90-19 57H
    Rear Suspension
    Rear Brakes Single-piston
    Rear Tire 150/80B16 71H
    Dimensions
    Dry Weight 557 lbs. (252.6552 kg)
    Fuel Capacity 4.5 gal. (17.0325 l)
    Wheelbase 59.7 in. (1516.38 mm)
    MPG 42 mpg (42 l/100km)
    Seat Height Laden: 26.3 in. (668.02 mm); Unladen: 28 in. (711.2 mm)
    Trail 4.7 in. (119.38 mm)
    Rake 29.6 deg.
    Engine
    Engine Type Evolution®
    Displacement 73.3 cu. in. (1200 cc)
    Bore and Stroke 3.5 in. (88.9 mm) and 3.812 in. (96.8248)
    Cooling Air-cooled
    Compression Ratio 9.7:1
    Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
    Ignition
    General
    Speedometer Electronic
    Tachometer
    Odometer Electronic
    Colors Vivid Black Flame Blue Pearl Red Hot Sunglo Two-Tone Scarlet Red / Vivid Black Two-Tone Merlot Sunglo / Cherry Red Sunglo (Custom Color) Two-Tone White Ice Pearl / Black Ice Pearl (Custom Color)
    Warranty
    Transmission
    Transmission 5 Speed
    Final Drive Chain, 57/38 ratio
